Mill 7 Complete Sampling System
Determination of Nitrogen Oxide Emissions from Stationary Sources. This Method is applicable to the measurement of nitrogen oxides emitted from stationary sources. Complete W/Control Unit • NOX Flasks Included.
- Mill 7 Sampling System (system includes items listed below) ... Item# 2100-7
- Mill 5 Sample Console Configured For M-7 Qty. 1 ... Item# 0310-7
- Vacuum Pump Qty. 1 ... Item# 0125
- 6’ M-7 Probe Qty. 1 ... Item# 0417-6
- 2-Liter Foam Insulated Flask W/3-Way Valve Qty. 13 ... Item# 5790
- Flask Dial Thermometer Qty. 1 ... Item# 0450-04FT
- 36” U-Tube Manometer (mercury not included) Qty. 1 ... Item# 0642M-36
- Digital Temperature Controller Qty. 1 ... Item# 0370
Method 7 - M-7 probes and associated items

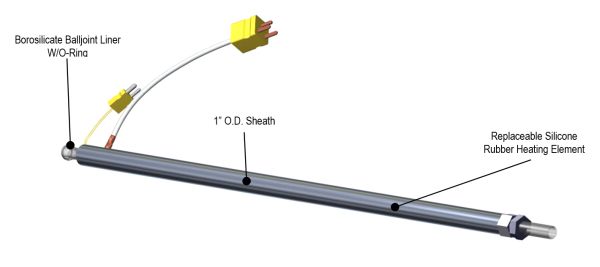

Complete M-7 Heated Probes
Complete M-7 Heated Probes
Complete M-7 Heated Probes
1” O.D. S.S. Construction • 120 V Heating Element • Type “K” Probe t/c • 12/5 Balljoint W/O-ring • Borosilicate 3/8” O.D. Liner with 5/8” Cup
- 4’ S.S. Heated M-7 Probe ... Item# 0417-4
- 6’ S.S. Heated M-7 Probe ... Item# 0417-6
Method 7 Probe Liners
Complete M-7 Heated Probes
Complete M-7 Heated Probes
12/5 Ball Joint W/O-ring • Available in Quartz, Borosilicate, or S.S.
- 4’ Effective M-7 Borosilicate Replacement Liner ... Item# 0437-4
- 6’ Effective M-7 Borosilicate Replacement Liner ...Item# 0437-6
