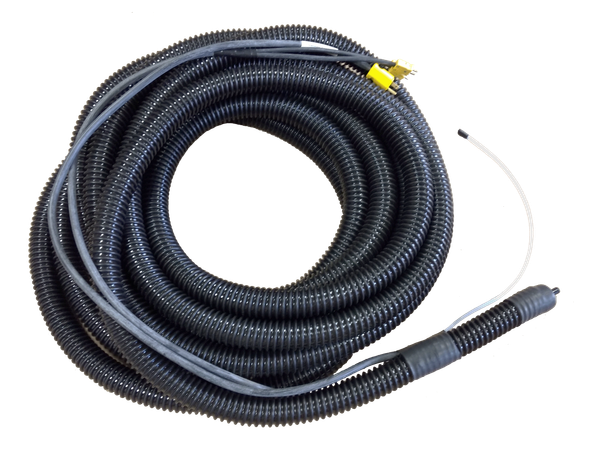

Designed to be lightweight, flexible and rugged allowing for easy service. The inner heated section can be removed easily for inspection/repair and can be re-jacketed if damaged. The construction uses a hybrid heater wire alloy that allows for lower operating amps when working with longer lines.
- 350°F Operating Temp. @ 0°F Ambient Temp.
- 110 V/AC
- 3/8” Heated Teflon Line
- 1/4" Unheated Cal Line
- Dual Insulated
- S.S. Tube End Connections
- Standard 3/8" PTFE heated line 1 /4" unheated calibration line
- Durable light weight jacket 100 Ft. weights 55# (flexible @ -40 Deg. F)
- Custom configurations available
- 375 deg. F operating temperature
- 100 Ft. length requires less than 19 amps (120 vac)
- Various connections available
- Standard line has redundant Type "k" thermocouples
- Double insulation
- Includes 120 nema plug and 2 X's male TIC plugs
- Temperature controller is required (self-limiting is available upon request)
- Lines are electrically grounded for safety
