Millennium M-5 Sampling System
This method is applicable for the determination of particulate emissions from stationary sources. Particulate matter is withdrawn isokinetically from the source and collected on a glass fiber filter maintained at a temperature in the range of 120±14°C (248±25°F) or such other temperature as specified by an applicable subpart of the standards or approved by Administrator, U.S. Environmental Protection Agency, for a particular application. The particulate mass, which includes any material that condenses at or above the filtration temperature, is determined gravimetrically after removal or uncombined water.
Millennium M-5 Sampling System .. Item# 2100-S
- Mill 5 Control Console ... Item# 0120
- Mill 5 Sample Console ... Item# 0300
- 6’ S.S. M-5 Probe (28-12 Ball Joint Stainless Steel liner) ... Item# 0400-6
- 50’ Umbilical Cable ... Item# 0650-50
- S.S. Nozzle Set ... Item# 0400-S
- Impinger Outlet ... Item# 0610
- Millennium M-5 Glassware System ... Item# 5502S
- B.S. Port Seal Adapter ... Item# 8550
- 85mm Glass Fiber Filters (box of 100) ... Item# 1034
- 10’ Probe Rod Kit ... Item# 0482-10
- Nozzle Brush Set ... Item# 0400-B
- Mill 5 Control Console Shipping Case ... Item# 0120-SC
- Critical Orifice Set S.S. ... Item#0605-S
Mill 5 Sampling System
This method is applicable for the determination of particulate emissions from stationary sources. Particulate matter is withdrawn isokinetically from the source and collected on a glass fiber filter maintained at a temperature in the range of 120±14°C (248±25°F) or such other temperature as specified by an applicable subpart of the standards or approved by Administrator, U.S. Environmental Protection Agency, for a particular application. The particulate mass, which includes any material that condenses at or above the filtration temperature, is determined gravimetrically after removal or uncombined water.
Mill 5 Sampling System .. Item# 2100
- Mill 5 Control Console ... Item# 0120
- Mill 5 Sample Console ... Item# 0300
- 6’ S.S. M-5 Probe (28-12 Ball Joint Stainless Steel liner) ... Item# 0400-6
- 50’ Umbilical Cable ... Item# 0650-50
- S.S. Nozzle Set ... Item# 0400-S
- Impinger Outlet ... Item# 0610
- Mill 5 Glassware System ... Item# 5501S
- 85mm Glass Fiber Filters (box of 100) ... Item# 1034
- 10’ Probe Rod Kit ... Item# 0482-10
- S.S. Port Seal Adapter ... Item# 8550
- Nozzle Brush Set ... Item# 0400-B

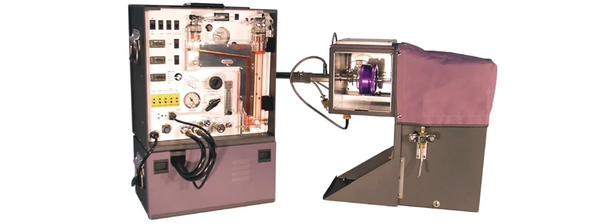

METHOD 5 – control console -&- sample console
Mill 5 Control Console
Mill 5 Control Console
Mill 5 Control Console
The Millennium Instruments Mill-5 control console is a versatile user-friendly instrument designed for the performance of US EPA reference method testing. The control console when properly outfitted will perform methods 4, 5, 6, 8, 8A, 5I, 17, 23, 29, or any method requiring an isokinetic sample rate. The
construction incorporates easy to read analog/digital gauges. Solid-state circuitry is used in all electronic components. The chassis is split into two sections, the control console and the pump housing, which can be easily joined, or separated for shipping/handling. The Mill-5 has been designed to be compatible with most brands of testing equipment.
- Mill 5 Control Console 110V ... Item# 0120
- Mill 5 Control Console (no pump) ... Item# 0120-C
- Mill 5 Vacuum Pump ... Item# 0120-P
- Mill 5 Control Console 220V ... Item# 0120-220
- Mill 5 Control Console Metric ... Item# 0120-M
Mill 5 Sample Console
Mill 5 Control Console
Mill 5 Control Console
The Mill 5 Sample Console consists of a heated filter unit, an ice bucket, and the ““hibb”” to connect to the two units together. The heated filter unit comes complete with a probe arm support, probe heater receptacle, auxiliary power receptacle, and standard umbilical connector. The max continuous temperature is 300° F and is maintained by the Mill-5 control console via an umbilical. The ice bucket is thermally insulated and comes with a bracket to
support the impinger outlet. The “hibb” is used to support and connect the heated filter unit to the ice bucket. The bottom plate of the “hibb” is used to support miscellaneous items such as re-circulation pumps, sample pumps, heated sample line controllers, and many other ancillary testing items. The heated filter box has been designed to be compatible with most
brands of testing equipment.
- Mill 5 Sample Console ... Item #0300
Mill 5 - sample console for m-5 -&- heated filter system
Mill 5 Sample Console Configured for M-5
- Heated Filter Box ... Item# 0301
- Hibb Support Bracket ... Item# 0310
- 6 Impinger Ice Bucket ... Item# 0311
- Canvas Cover ... Item# 0312
The Probe Support Arm can be conveniently removed androtated providing top or side access to the heated area.

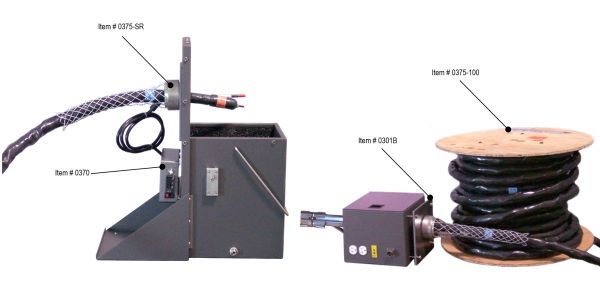

Heated Filter System with Heated Umbilical
- 100’ OAL Length Heated Sample Line ... Item# 0375-100
- Strain Relief Mounting Plate (including hardware) ... Item# 0301-B
- Strain Relief 1.62” – 2.00” Line Dia. ... Item# 0375-SR
