CEM Gas sampLing probes

---

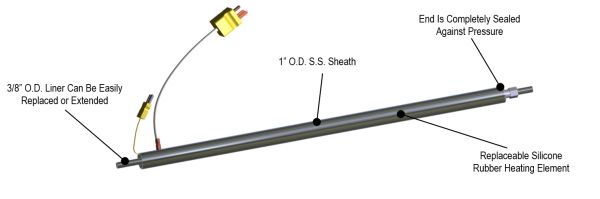

Many versions of this style of CEM Probe are available. 316 S.S. Construction • 120 V Heating Element • 1” O.D. Sheath

• 4’ Heated Gas Sample Probe ... Item# 0490-4
• 6’ Heated Gas Sample Probe ... Item# 0490-6
• 8’ Heated Gas Sample Probe ... Item# 0490-8
• 10’ Heated Gas Sample Probe ... Item# 0490-10

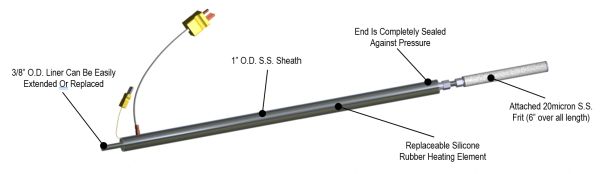

Many versions of this style of CEM Probe are available. 316 S.S. Construction • 120 V Heating Element • 1” O.D. Sheath • 6” 20 Micron Attached Frit

• 4’ Heated Gas Sample Probe W/Attached Frit ... Item# 0490-4F
• 6’ Heated Gas Sample Probe W/Attached Frit ... Item# 0490-6F
• 8’ Heated Gas Sample Probe W/Attached Frit ... Item# 0490-8F
• 10’ Heated Gas Sample Probe W/Attached Frit ... Item# 0490-10F
• Other Frit Options Available  - Specifications shown here.

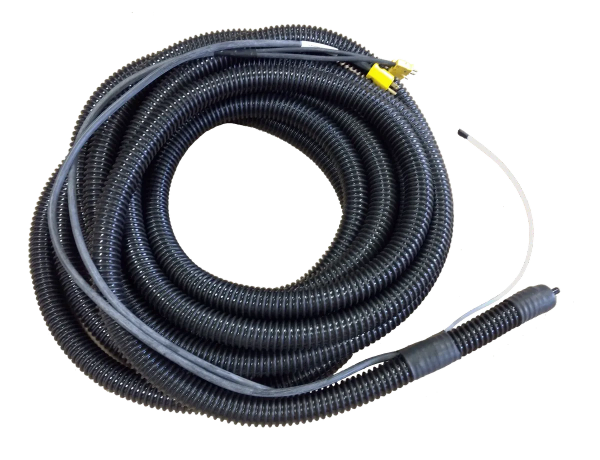

Designed to be lightweight, flexible and rugged allowing for easy service.  The inner heated section can be removed easily for inspection/repair and can be re-jacketed if damaged. The construction uses a hybrid heater wire alloy that allows for lower operating amps when working with longer lines.

• 350°F Operating Temp. @ 0°F Ambient Temp.
• 110 V/AC
• 3/8” Heated Teflon Line
• 1/4" Unheated Cal Line
• Dual Insulated
• S.S. Tube End Connections
• Standard 3/8" PTFE heated line 1 /4" unheated calibration line
• Durable light weight jacket 100 Ft. weights 55# (flexible @ -40 Deg. F)
• Custom configurations available
• 375 deg. F operating temperature
• 100 Ft. length requires less than 19 amps (120 vac)
• Various connections available
• Standard line has redundant Type "k" thermocouples
• Double insulation
• Includes 120 nema plug and 2 X's male TIC plugs
• Temperature controller is required (self-limiting is available upon request)
• Lines are electrically grounded for safety

Call With Your Specific Needs.

Many Configurations Available.

• Additional TFE Tubing
• Electric Messenger Wires
• Replaceable Sample Tube
• Hazard Proof
• T/C Messenger Wires

Call With Your Specific Needs.
