Millennium-M17 Sampling System
Millennium-M17 Sampling System
Millennium-M17 Sampling System
Determination of Particulate Emissions from Stationary Source (in stack filtration method).
- Millennium-M17 Sampling System (System includes items listed below) ... Item# 2100-17
- Mill 5 Control Console ... Item# 0120
- Mill 5 Sample Console Configured For M-17 ... Item# 0303
- 6’ S.S. Millennium M-17 Probe ...Item# 0481-6H
- 50’ Umbilical Cable ... Item# 06317-50
- S.S. Nozzle Set ... Item# 0400-S
- Impinger Outlet ... Item# 0610
- Alundum Thimble Holder ...Item# 7080
- 47mm S.S. Filter Holder ... Item# 7085
- Millennium M17 Glassware Set ... Item# 5505
- 34 x 100 Alundum Thimble (6 pack) ... Item# 7080-AT
- 47mm Glass Fiber Filters (box of 100) ... Item# 1030
- Nozzle Brush Set ... Item# 0400-B
- 1/2" Pipe - 3/8” Pipe S.S. Union ... Item#9502
- 1/2" Pipe – 5/8” Tube S.S. Union ... Item#9503
- 3/8" Pipe – 5/8” Tube S.S. Union ... Item#9501
Mill-17 Sampling System
Millennium-M17 Sampling System
Millennium-M17 Sampling System
Determination of Particulate Emissions from Stationary Source (in stack filtration method).
- Mill-17 Sampling System (System includes items listed below) ... Item# 2100-17M
- Mill 5 Control Console ... Item# 0120
- 6’ S.S. Mill M-17 Probe ... Item# 0480-6
- 50’ Umbilical Cable ... Item# 0635-SOC
- S.S. Nozzle Set ...Item# 0400-S
- Alundum Thimble Holder ... Item# 7080
- 47mm S.S. Filter Holder ...Item# 7085
- Mill 17 Glassware Set ... Item# 5512
- 34 x 100 Alundum Thimble (6 pack) ... Item# 7085-AT
- 47mm Glass Fiber Filters (box of 100) ... Item# 1030
- Nozzle Brush Set ...Item# 0400-B
- Shepard Hook ... Item# 0480-SE
- Condensate Cooler ... Item# 0311-C
- 1/2" Pipe - 3/8” Pipe S.S. Union ... Item# 9502
- 1/2" Pipe – 5/8” Tube S.S. Union ...Item# 9503
- 3/8" Pipe – 5/8” Tube S.S. Union ... Item# 9501
- 1/2" Pipe - 3/8” Pipe S.S. Hex Reducer ... Item# 9580
METHOD 17 / ISO-9096- probes and associated items
S.S. Millennium-M17 Probes
Determination of Particulate Emissions from Stationary Source (in stack filtration method). S.S. Construction • 120V Silicone Heating Element • Calibrated “S” Type Pitot • S.S. Probe Liner • S.S. Filter Union • Type “K”
Probe & Stack Thermocouple
- 2’ S.S. Millennium-M17 Probe ... HEATED: Item# 0481-2H • UNHEATED: Item# 0481-2
- 3’ S.S. Millennium-M17 Probe ... HEATED: Item# 0481-3H • UNHEATED: Item# 0481-3
- 4’ S.S. Millennium-M17 Probe ... HEATED: Item# 0481-4H • UNHEATED: Item# 0481-4
- 5’ S.S. Millennium-M17 Probe ... HEATED: Item# 0481-5H • UNHEATED: Item# 0481-5
- 6’ S.S. Millennium-M17 Probe ... HEATED: Item# 0481-6H • UNHEATED: Item# 0481-6
- 7’ S.S. Millennium-M17 Probe ... HEATED: Item# 0481-7H • UNHEATED: Item# 0481-7
- 8’ S.S. Millennium-M17 Probe ... HEATED: Item# 0481-8H • UNHEATED: Item# 0481-8
- 9’ S.S. Millennium-M17 Probe ... HEATED: Item# 0481-9H • UNHEATED: Item# 0481-9
- 10’ S.S. Millennium-M17 Probe ... HEATED: Item# 0481-10H • UNHEATED: Item# 0481-10
- 11’ S.S. Millennium-M17 Probe ... HEATED: Item# 0481-11H • UNHEATED: Item# 0481-11
- 12’ S.S. Millennium-M17 Probe ... HEATED: Item# 0481-12H • UNHEATED: Item# 0481-12
Standard lengths available up to 20’ call representative for pricing and availability
S.S. Mill-17 Probes
Determination of Particulate Emissions from Stationary Source (in stack filtration method). S.S. Construction • 3/4” Schedule 40 S.S. Sample Pipe • S.S. Sample Drier • Calibrated “S” Type Pitot • Type “K” Probe & Stack Thermocouple
- 2’ S.S. M-17 Probe ... Item# 0480-2
- 3’ S.S. M-17 Probe ... Item# 0480-3
- 4’ S.S. M-17 Probe ... Item# 0480-4
- 5’ S.S. M-17 Probe ... Item# 0480-5
- 6’ S.S. M-17 Probe ... Item# 0480-6
- 7’ S.S. M-17 Probe ... Item# 0480-7
- 8’ S.S. M-17 Probe ... Item# 0480-8
- 9’ S.S. M-17 Probe ... Item# 0480-9
- 10’ S.S. M-17 Probe ... Item# 0480-10
- 11’ S.S. M-17 Probe ... Item# 0480-11
- 12’ S.S. M-17 Probe ... Item# 0480-12
Standard lengths available up to 20’ call representative for pricing and availability
SHEPHERD HOOKS
- 47mm Filter Holder Only ... Item# 0480-S
- Thimble Holder & 47mm Filter Holder ... Item# 0480-SE
- Probe Drier
METHOD 17 / ISO-9096- glassware and associated items

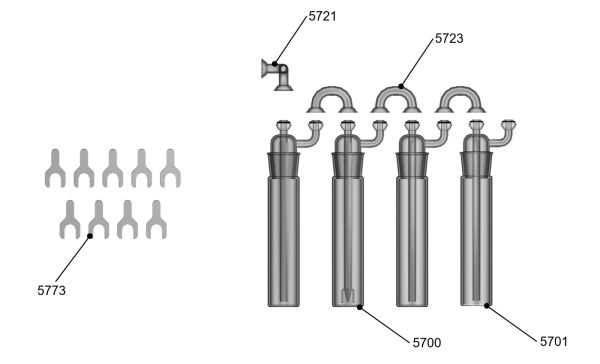

Millennium-M17 Glassware Set
Millennium-M17 Glassware Set
Millennium-M17 Glassware Set
Determination of Particulate Emissions from Stationary Source (in stack filtration method). Heavy Wall Construction • Ground Glass Single O-ring Joints
- Heavy Wall Construction • Ground Glass Single O-ring Joints (Set Includes Items Listed Below) ... Item# 5505
- Greenburg Smith Impinger Assembly Qty. 1 ... Item# 5700
- Modified Impinger Assembly Qty. 3 ... Item# 5701
- 180 Degree Bend Qty. 3 ... Item# 5723
- Double “L” Adapter Qty. 1 ... Item# 5721
- #28 S.S. Pinchclamp Qty. 9 ... Item# 5773

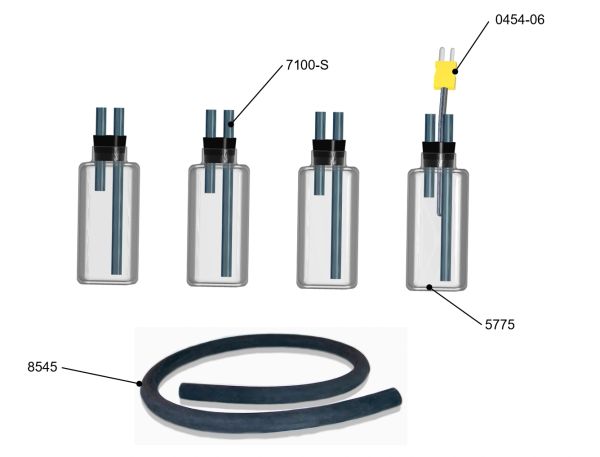

Mill-17 Glassware Set
Millennium-M17 Glassware Set
Millennium-M17 Glassware Set
Determination of Particulate Emissions from Stationary Source (in stack filtration method).
- Mill-17 Glassware Set (Set Includes Items Listed Below) ... Item# 5512
- 16oz. Square Side Condensate Bottle Qty. 4 ... Item# 5775
- #81/2 2-Hole Stopper With S.S. Tube Stems Qty. 4 ... Item# 7100-S
- Type “K” Thermocouple Qty. 1 ... Item# 0454-06
- Gum Rubber Connecting Tube Qty. 3 ft. ... Item# 8545
METHOD 17 / ISO-9096- filters and filter holders
Filters and Filter Holders
Determination of Particulate Emissions from Stationary Source (in stack filtration method).
- 47 mm S.S. Filter Holder ... Item# 7085
- 47 mm Glass Fiber Filters (Box of 100) ... Item# 1030
- 34 mm x 100 mm Alundum Thimble Holder ... Item# 7080
- 34 mm x 100 mm Alundum Thimble (6 pack) ... Item# 7080-AT
- High Temp. Alundum Thimble Machined For Spring Adapter (6 pack) ... Item# 7080-ATS
- Thimble Holder High Temp. Spring Adapter ... Item# 7080-S
- Thimble Holder Gaskets Large (10 pack) ... Item# 7088-L
- Thimble Holder Gaskets Small (10 pack) ... Item# 7088-S
