Mill 6 Sampling System
Determination of Sulfur Dioxide Emissions from Stationary Sources. This Method is applicable for the determination of sulfur dioxide emissions from stationary sources.
- Mill 6 Sampling System (system includes items listed below) ... Item# 2160
- Mill 5 Control Console (no pump) ... Item# 0120-C *
- Mill 5 Sample Console Configured For M-6 ... Item# 0310-6
- 6’ S.S. Heated Source Sampling Probe (12-5 ball joint borosilicate liner) ... Item# 0416-6
- 25’ Umbilical Cable ... Item# 0636-25
- Impinger Outlet (Midget) ... Item# 0611
- Mill 6 Glassware Set ... Item# 5506
- Umbilical Junction Box (4-pin adapter) ... Item# 0618
- Sample Pump W/Flowmeter ... Item# 0121-P
* Metric control console is available with 1 liter per revolution dry gas meter.
Method 6 - m-6 probes and associated items

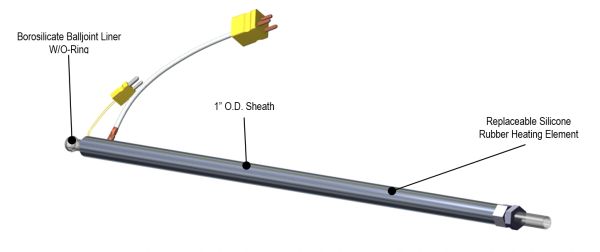

Complete M-6 Heated Probes
1” O.D. S.S. Construction • 120 V Heating Element • Type “K” Probe t/c • 12/5 Balljoint W/O-ring Borosilicate • 3/8” O.D. Liner with 5/8” Cup
- 4’ Borosilicate Heated M-6 Probe ... Item# 0416-4
- 6’ Borosilicate Heated M-6 Probe ... Item# 0416-6
Method 6 Probe Liners
12/5 Ball Joint W/O-ring • Available in Quartz, Borosilicate, or S.S.
- 4’ Effective M-6 Borosilicate Replacement Liner ... Item# 0438-4
- 6’ Effective M-6 Borosilicate Replacement Liner ... Item# 0438-6
method 6 - glassware and associated items

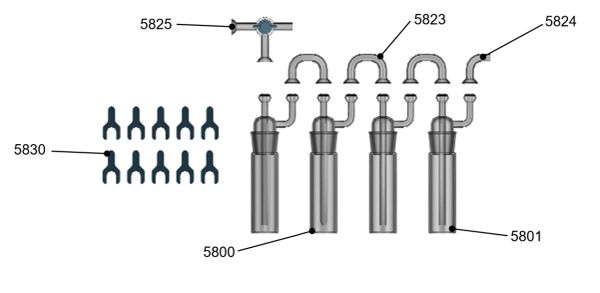

Mill 6 Glassware Set
Heavy Wall Construction • Ground Glass Single O-ring Joints •
12/5 Ball Joint Connect
- Mill 6 Glassware Set (System Includes Items Listed Below) ... Item# 5506
- Midget Impinger Assembly Qty. 1 ... Item# 5800
- Modified Midget Impinger Assembly Qty. 3 ... Item# 5801
- Midget 180° Connector Qty. 3 ... Item# 5823
- Midget 90° Connector Qty. 1 ... Item# 5824
- Clamps Qty. 10 ... Item# 5830
- 3-Way Valve Qty. 1 ... Item# 5825
Glass Wool
- Glass Wool ... Item# 9587
