Mill 23 Sampling System
Determination of Polychlorinated Dibenzo-P-Dioxins and Polychlorinated Dibenzofurans from Stationary Sources
- Mill 23 Sampling System (System includes items listed below) ... Item# 2100-23
- Mill 5 Control Console ... Item# 0120
- Mill 5 Sample Console ... Item# 0300
- 6’ S.S. M-23 Probe (tapered borosilicate liner) ... Item# 0418-6
- 50’ Umbilical Cable ... Item# 0650-50
- Tapered Borosilicate Nozzle Set ... Item# 0405-S
- Impinger Outlet ... Item# 0610
- Millennium Modified M-5 Glassware System ... Item# 5502DS
- 85mm Quartz Fiber Filters (box of 25) ... Item# 1035
- 10’ Probe Rod Kit ... Item# 0482-10
- S.S. Port Seal Adapter ...Item# 8550
- Recirculation Pump ... Item# 0124
METHOD 23 - probes and associated items

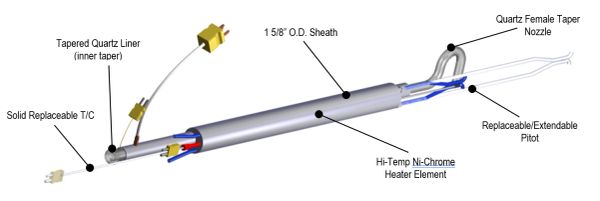

Complete M-23 Probes with Tapered Quartz Liners
Complete M-23 Probes with Tapered Borosilicate Liners
Complete M-23 Probes with Tapered Borosilicate Liners
S.S. Construction • 120 V Tube Heating Element • Calibrated “S” Type Pitot • Tapered Quartz Probe Liner w/28 Balljoint and 14/35 Inner Joint • Type “K” Probe & Stack Thermocouple
- 2’ Tapered Quartz M-23 Probe ... Item# 0414-2
- 3’ Tapered Quartz M-23 Probe ... Item# 0414-3
- 4’ Tapered Quartz M-23 Probe ... Item# 0414-4
- 5’ Tapered Quartz M-23 Probe ... Item# 0414-5
- 6’ Tapered Quartz M-23 Probe ... Item# 0414-6
- 7’ Tapered Quartz M-23 Probe ... Item# 0414-7
- 8’ Tapered Quartz M-23 Probe ... Item# 0414-8
- 9’ Tapered Quartz M-23 Probe ... Item# 0414-9
- 10’ Tapered Quartz M-23 Probe ... Item# 0414-10
- 11’ Tapered Quartz M-23 Probe ... Item# 0414-11
- 12’ Tapered Quartz M-23 Probe ... Item# 0414-12
Standard lengths available up to 20’ call representative for pricing and availability

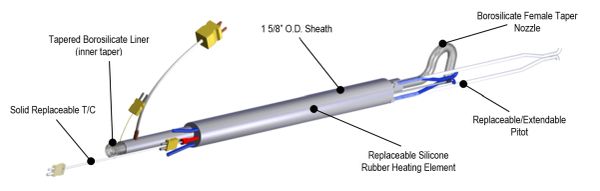

Complete M-23 Probes with Tapered Borosilicate Liners
Complete M-23 Probes with Tapered Borosilicate Liners
Complete M-23 Probes with Tapered Borosilicate Liners
S.S. Construction • 120 V Tube Heating Element • Calibrated “S” Type Pitot • Tapered Borosilicate Probe Liner w/28 Balljoint and 14/35 Inner Joint • Type “K” Probe & Stack Thermocouple
- 2’ Tapered Borosilicate M-23 Probe ... Item# 0418-2
- 3’ Tapered Borosilicate M-23 Probe ... Item# 0418-3
- 4’ Tapered Borosilicate M-23 Probe ... Item# 0418-4
- 5’ Tapered Borosilicate M-23 Probe ... Item# 0418-5
- 6’ Tapered Borosilicate M-23 Probe ... Item# 0418-6
- 7’ Tapered Borosilicate M-23 Probe ... Item# 0418-7
- 8’ Tapered Borosilicate M-23 Probe ... Item# 0418-8
- 9’ Tapered Borosilicate M-23 Probe ... Item# 0418-9
- 10’ Tapered Borosilicate M-23 Probe ... Item# 0418-10
- 11’ Tapered Borosilicate M-23 Probe ... Item# 0418-11
- 12’ Tapered Borosilicate M-23 Probe ... Item# 0418-12
Standard lengths available up to 20’ call representative for pricing and availability
Tapered Quartz Glass Probe Liners
Quartz 5/8” O.D. • 14/35 Male Taper • 28/12 Ball Joint w/O-ring.
TFE. Coated Silicone O-ring
- 2’ Effective length ... Item# 0433-2T
- 3’ Effective length ... Item# 0433-3T
- 4’ Effective length ... Item# 0433-4T
- 5’ Effective length ... Item# 0433-5T
- 6’ Effective length ... Item# 0433-6T
- 7’ Effective length ... Item# 0433-7T
- 8’ Effective length ... Item# 0433-8T
- 9’ Effective length ... Item# 0433-9T
- 10’ Effective length ... Item# 0433-10T
- 11’ Effective length ... Item# 0433-11T
- 12’ Effective length ... Item# 0433-12T
Overall length is 1’ longer than effective length.
Tapered Borosilicate Glass Probe Liners
Borosilicate 5/8” O.D. • 14/35 Inner Taper • 28/12 Ball Joint w/O-ring
- 2’ Effective length ... Item# 0432-2T
- 3’ Effective length ... Item# 0432-3T
- 4’ Effective length ... Item# 0432-4T
- 5’ Effective length ... Item# 0432-5T
- 6’ Effective length ... Item# 0432-6T
- 7’ Effective length ... Item# 0432-7T
- 8’ Effective length ... Item# 0432-8T
- 9’ Effective length ... Item# 0432-9T
- 10’ Effective length ... Item# 0432-10T
- 11’ Effective length ... Item# 0432-11T
- 12’ Effective length ... Item# 0432-12T
Overall length is 1’ longer than effective length.
M-23 Glassware and associated items

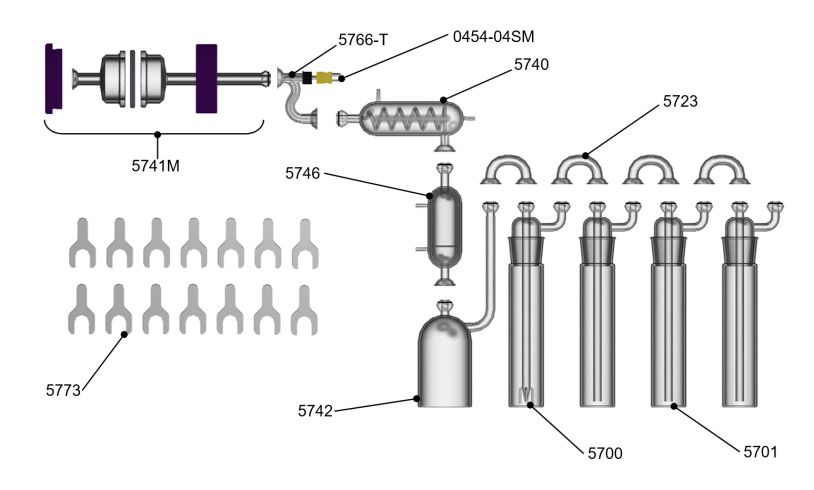

Millennium Modified M-5 Glassware Set
Heavy Wall Construction • Ground Glass Single O-ring Joints
- Millennium Modified M-5 Glassware Set ... Item# 5502D
- Greenburg Smith Impinger Assembly Qty. 1... Item# 5700
- Modified Impinger Assembly Qty. 3... Item# 5701
- 180 Degree Bend Qty. 4... Item# 5723
- “S” Adapter W/Threaded T/C Connection Qty. 1... Item# 5766-T
- 3” Glass Filter Holder Assembly Qty. 1... Item# 5741M
- MM5 Hybrid Impinger Qty. 1... Item# 5742
- MM5 Coil Condenser Qty. 1... Item# 5740
- #28 S.S. Pinchclamp Qty. 14... Item# 5773
- MM5 Sorbent Trap Qty. 1... Item# 5746
- 4” X ¼” O.D. Type “K” Thermocouple Qty. 1... Item# 0454-04SM
Method 23 - nozzles and associated items
Tapered Quartz Nozzles
14/35 Female Taper
- *1/8” Gooseneck ... Item# 0404-125
- *3/16” Gooseneck ... Item# 0404-185
- 1/4” Gooseneck ... Item# 0404-250
- *5/16” Gooseneck ... Item# 0404-3125
- *3/8” Gooseneck ... Item# 0404-375
- *7/16” Gooseneck ... Item# 0404-4375
- *1/2" Gooseneck ... Item# 0404-500
- 5/8” Gooseneck ... Item# 0404-625
- 3/4" Gooseneck ... Item# 0404-750
- Tapered Quartz Nozzle Set (Includes items marked with an *, foam lined carrying case) ... Item# 0404-S
Tapered Borosilicate Glass Nozzles
14/35 Female Taper
- *1/8” Gooseneck ... Item# 0405-125
- *3/16” Gooseneck... Item# 0405-185
- 1/4” Gooseneck... Item# 0405-250
- *5/16” Gooseneck... Item# 0405-3125
- *3/8” Gooseneck... Item# 0405-375
- 7/16” Gooseneck... Item# 0405-4375
- *1/2" Gooseneck... Item# 0405-500
- 5/8” Gooseneck... Item# 0405-625
- 3/4" Gooseneck... Item# 0405-750
- Tapered Borosilicate Nozzle Set (Includes items marked with an *, foam lined carrying case)... Item# 0405-S
